Water Temperature Control Machine Suitable for Precision Instruments -LWM-30-12KW
A Water Temperature Control Machine for Precision Instruments is a high-precision, stable, and energy-efficient closed-loop water circulation system. It is designed to maintain an accurate, constant water temperature to cool or heat precision instruments, ensuring their performance, accuracy, and longevity.
Número de artículo :
LWM-30-12kwPedido (cantidad mínima de pedido) :
1Pago :
EXW/FOB/CIF/FCA/DPU/DDUOrigen del producto :
CHINAColor :
CustomizablePuerto de embarque :
SHANGHAI/NANJINGplazo de entrega :
15Peso :
120kg

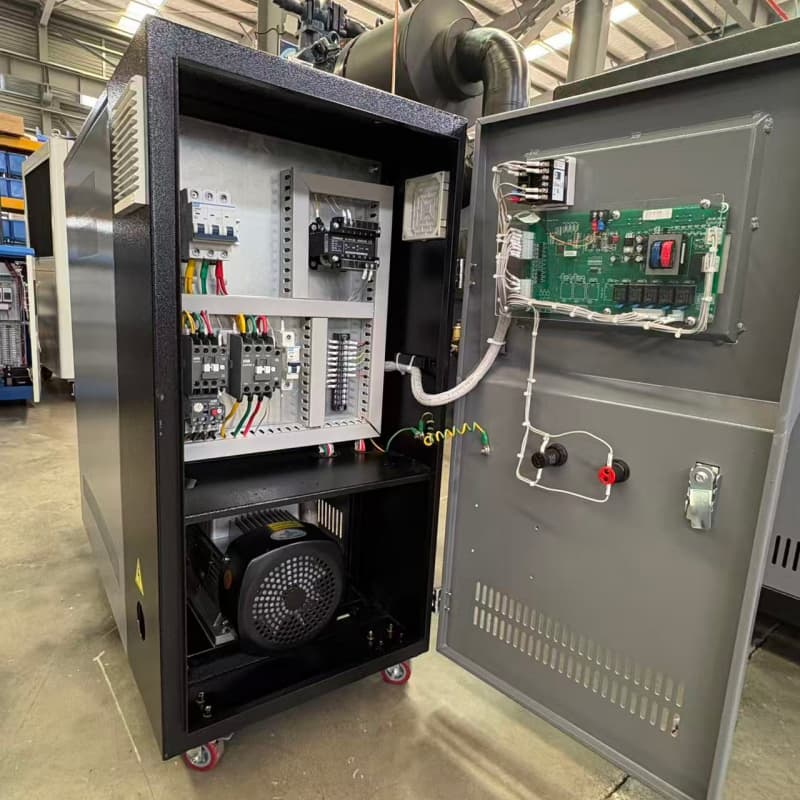

LWM Series Water Temperature Control Unit
Heating Stage: Water is heated indirectly via electric heating tubes or heat-conducting oil to raise its temperature to 120°C. Since 120°C exceeds the boiling point of water (100°C) under standard atmospheric pressure, the equipment maintains water in a liquid state through sealed pressurization.
Circulation Stage: High-temperature hot water is delivered by a circulation pump to temperature-controlled equipment such as molds and reaction kettles, where heat exchange is completed.
Temperature Control Stage: A temperature sensor monitors the water temperature in real time. When the temperature is lower than the set value, heating is activated; when it is higher than the set value, heating is stopped. This ensures the water temperature remains stable at approximately 120°C
Water Temperature Control Unit Application
Main Application Fields
Safety Protection Function
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a trading company under Jiangsu Rongyida Co., Ltd., which owns a strong manufacturing base for temperature control equipment. This allows us to provide both factory-direct pricing and customized technical solutions.
Q2: How can I choose the right temperature control equipment for my factory?
A2: Just send us the following information:
Required temperature range;Heating/cooling medium;Power supply voltage;Industry/application (e.g., plastic, chemical, food, etc.)
Our engineers will recommend the best model for you within 24 hours.
Q3: What is your delivery time?
A3: Usually 7–15 working days for standard models and 20–30 days for customized systems. We will confirm exact lead time after order details are finalized.
Model And Technical Parameter
| Model | Unit | LWM-05 | LWM-10 | LWM-20 | LWM-30 | LWM-50 | LWM-75 |
| Temp. control range | Inlet water temperature +15-120℃ | ||||||
| Temp. accuracy | PID±1℃ | ||||||
| Power | AC3Φ380V 50HZ 3P+E(5M) | ||||||
| Heat transfer medium | Water | ||||||
| Cooling methad | Indirect cooling | ||||||
| Heating capacity | KW | 6 | 9 | 12/18 | 24/36 | 45/60 | 75/90 |
| Pump power | HP | 0.5 | 1 | 2 | 3 | 5 | 7.5 |
| Max.pump flow | L/min | 95 | 165 | 236 | 315 | 385 | 415 |
| Max.pump pressure | Bar | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3 |
| Power supplier | KW | 7 | 10 | 13/19 | 26/38 | 49/64 | 80/95 |
| Cooling water pipe | Inch | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 1 |
| Circulation oil pipe | Inch | 1/2 | 3/4 | 1 | 1.2 | 1.5 | 2.5 |
| Dimension（mm） | L | 650 | 625 | 850 | 1110 | 1200 | 1670 |
| W | 280 | 325 | 400 | 420 | 500 | 550 | |
| H | 520 | 650 | 900 | 1110 | 1260 | 1360 | |
| Weight | kg | 62 | 68 | 75 | 90 | 150 | 180 |
Note: The specification is subject to change due to product improvement without prior notice.
Process Flow Diagram
Application Case
Our water temperature control unit is widely used across various industrial applications, including casting moulds, rubber vulcanization, wheel temperature control, hot press technology, carbon fiber production, and chemical reactions. It ensures precise temperature management, improving production efficiency and product quality in these processes.
